Posted: Sun Nov 16, 2014 11:28 pm Post subject: Help with shutter curtains for a Pontiac Lynx repair |
|
|
Jesito wrote:
Hi colleagues,
It has been a long time since I posted my last contribution on camera repair. Lots of work on one side and a some minor health problems on the other, have put me aside of the workbench.
Now I've had a couple of weekends with very little obligations, no family activities and no gardening possible (I've to care my back), so I've taken the opportunity to continue with a long term project: the recovery of an old Pontiac Lynx II that I got from a flea market. It cost me 10€, but it was in a very bad shape. When I opened it to verify the inside, I noticed broken curtains in the shutter and also lots of dust and debris like if it had been poured water inside. But it looked stylish and I didn't know that brand, so I took it. This was one year ago or so.
After some cosmetic cleanup on the outside (just to be able to handle it) the camera looked like this:
To take out the lens block is quite easy, just to unscrew the four screws in the front side.
The top cames out quite simply, unscrewing two screws on it. The shutter mechanism is quite straightforward and simple, so I had good expectations on this repair. So I ordered some shutter fabric to AKI-ASAHI and started to disassemble the shutter, to measure the current curtains and replace the fabric.
So far, so good. But once I had the shutter reels in my hands, I noticed an element which I didn't take into account, the metal clips that protect the edge of the curtains:
They are in bad shape. I'm not sure they could be reused, so I'm currently stuck at this point. Curtains ready to be cut, but no idea on how to replace the clips.
Any ideas, suggestions?. Using some clips coming from a 35mm donor SLR won't be a solution, the Pontiac uses 127 film.
Thanks in advance.
Jes. _________________ Jesito, Moderator
Jesito's backsack:
Zooms Sigma 70-300, Tamron 35-135 and 70-210 short, 70-210 long, 28-70 CF Macro, 35-70, 35-80, Vivitar 70-210 KA, Tamron 70-250.
Fixed Industar-50, , Tamron 24mm, Tamron 135mm, Sands Hunter 135mm, Pancolar 50mm, Volna-3, many Exakta lenses
DSLR SIGMA SD9 & SD14, EOS 5D, Sony A700 and NEXF3, Oly E-330, E-400, E-450, E-1
TLR/6x6/645 YashicaMat, Petri 6x45, Nettar, Franka Solida, Brilliant
SLR Minolta X300, Fuji STX II, Praktica VLC3, Pentax P30t, EXA500, EXA 1A, Spotmatic(2), Chinon CM-4S, Ricoh, Contax, Konica TC-X , Minolta 5000, 7000i, 3Sxi, EOS 500 and CX
Rangefinders Chinon 35EE, Konica C35 auto, Canonet 28, Yashica Lynx, FED-2, Yashica electro 35, Argus C3 & C4, Regula Cita III, Voigtlander Vitoret (many), Welta Welti-I, Kodak Signette 35, Zorki-4, Bessa-R & L, Minolta Weathermatic, olympus XA2
Compact Film Konica C35V, Voigtlander Vitorets, Canon Prima Super 105, Olympus XA2 and XA3
Compact Digital Olympus C-5050, Aiptek Slim 3000, Canon Powershot A540, Nikon 5200, SIGMA DP1s, Polaroid X530, IXUS55, Kodak 6490, Powershot G9 and G10
CSCCanon EOS-M, Samsung NX100 and NX210, Lumix G5, NEX-F3 |
|
Back to top |
|
|
jaecarlos714
Joined: 06 Jun 2013 Posts: 17 Location: Portland, Oregon
|
Posted: Mon Nov 17, 2014 10:18 pm Post subject: |
|
|
jaecarlos714 wrote:
Jesito,
Only thought is to make your own...
It looks like you need thin metal sheet (.010-.020" thick). I would try by cutting up a soup can and use the side wall. It is usually thin, bendable steel. Then get a pin vise and put the sheet and a strong metal ruler in the vise, then bend the sheet over the ruler so a long straight line bend is made, slowly fold the sheet over the ruler, until it's bent more than 90degrees. To finish the bend, open the vise and replace the ruler with your shutter fabric edge, then put back in vise and slowly close vise to crimp metal to shutter fabric. It may take a few attempts to get it right.
John |
|
Back to top |
|
|
Jesito
Joined: 24 Aug 2007 Posts: 5745 Location: Olivella, Catalonia, (Spain)
Expire: 2015-01-07
|
Posted: Tue Nov 18, 2014 1:12 pm Post subject: |
|
|
Jesito wrote:
jaecarlos714 wrote: |
Jesito,
Only thought is to make your own...
It looks like you need thin metal sheet (.010-.020" thick). I would try by cutting up a soup can and use the side wall. It is usually thin, bendable steel. Then get a pin vise and put the sheet and a strong metal ruler in the vise, then bend the sheet over the ruler so a long straight line bend is made, slowly fold the sheet over the ruler, until it's bent more than 90degrees. To finish the bend, open the vise and replace the ruler with your shutter fabric edge, then put back in vise and slowly close vise to crimp metal to shutter fabric. It may take a few attempts to get it right.
John |
Hi John, Thanks for your tips. At the end I was thinking in the same, (using metal foil from a can) but didn't know how to proceed. It won't be easy, but at least I see a way out
I'll keep posting on it. Hope to be able to cope with the small parts, my sight isn't very good at this time.
Again, thanks for the clues. _________________ Jesito, Moderator
Jesito's backsack:
Zooms Sigma 70-300, Tamron 35-135 and 70-210 short, 70-210 long, 28-70 CF Macro, 35-70, 35-80, Vivitar 70-210 KA, Tamron 70-250.
Fixed Industar-50, , Tamron 24mm, Tamron 135mm, Sands Hunter 135mm, Pancolar 50mm, Volna-3, many Exakta lenses
DSLR SIGMA SD9 & SD14, EOS 5D, Sony A700 and NEXF3, Oly E-330, E-400, E-450, E-1
TLR/6x6/645 YashicaMat, Petri 6x45, Nettar, Franka Solida, Brilliant
SLR Minolta X300, Fuji STX II, Praktica VLC3, Pentax P30t, EXA500, EXA 1A, Spotmatic(2), Chinon CM-4S, Ricoh, Contax, Konica TC-X , Minolta 5000, 7000i, 3Sxi, EOS 500 and CX
Rangefinders Chinon 35EE, Konica C35 auto, Canonet 28, Yashica Lynx, FED-2, Yashica electro 35, Argus C3 & C4, Regula Cita III, Voigtlander Vitoret (many), Welta Welti-I, Kodak Signette 35, Zorki-4, Bessa-R & L, Minolta Weathermatic, olympus XA2
Compact Film Konica C35V, Voigtlander Vitorets, Canon Prima Super 105, Olympus XA2 and XA3
Compact Digital Olympus C-5050, Aiptek Slim 3000, Canon Powershot A540, Nikon 5200, SIGMA DP1s, Polaroid X530, IXUS55, Kodak 6490, Powershot G9 and G10
CSCCanon EOS-M, Samsung NX100 and NX210, Lumix G5, NEX-F3 |
|
Back to top |
|
|
Lloydy
Joined: 02 Sep 2009 Posts: 7785 Location: Ironbridge. UK.
Expire: 2022-01-01
|
Posted: Tue Nov 18, 2014 3:19 pm Post subject: |
|
|
Lloydy wrote:
I wouldn't bother trying to straighten a can, the curve will be difficult to flatten. A tiny bit of steel such as you need is pennies to buy, most engineering shops will have nice, perfectly flat, pieces in the scrap bin that they'll probably give you. If you can find an engineering / sheet metal workshop that has a machine called a 'box - pan bender' then they can very easily bend a narrow strip accurately, and it's a hand machine so it doesn't take time and effort to set the machine.
The other alternative is filing cabinet suspension files, they have a folded steel strip along the edge of the paper file. If that can be gently prised apart then you might have something that can be useful? _________________ LENSES & CAMERAS FOR SALE.....
I have loads of stuff that I have to get rid of, if you see me commenting about something I have got and you want one, ask me.
My Flickr https://www.flickr.com/photos/mudplugga/
My ipernity -
http://www.ipernity.com/home/294337 |
|
Back to top |
|
|
Jesito
Joined: 24 Aug 2007 Posts: 5745 Location: Olivella, Catalonia, (Spain)
Expire: 2015-01-07
|
Posted: Tue Nov 18, 2014 10:24 pm Post subject: |
|
|
Jesito wrote:
Lloydy wrote: |
I wouldn't bother trying to straighten a can, the curve will be difficult to flatten. A tiny bit of steel such as you need is pennies to buy, most engineering shops will have nice, perfectly flat, pieces in the scrap bin that they'll probably give you. If you can find an engineering / sheet metal workshop that has a machine called a 'box - pan bender' then they can very easily bend a narrow strip accurately, and it's a hand machine so it doesn't take time and effort to set the machine.
The other alternative is filing cabinet suspension files, they have a folded steel strip along the edge of the paper file. If that can be gently prised apart then you might have something that can be useful? |
Hi Lloydy, thanks for the clues

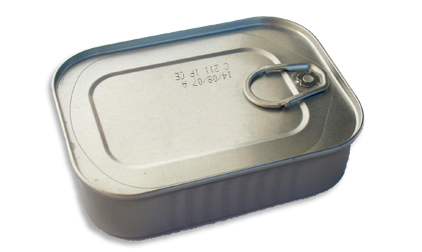

I was thinking in using a square one, like the sardines ones:
Not sure if I could locate an egineering shop in this area, this is a services and vacation zone, not too much industry around. Probably in Barcelona. I'll check with my workmates (some are industrial engineers and they may know). The other idea sounds very good also. There are lots of file cabinets at the office
I'll let you know how this is going. The fun has begun _________________ Jesito, Moderator
Jesito's backsack:
Zooms Sigma 70-300, Tamron 35-135 and 70-210 short, 70-210 long, 28-70 CF Macro, 35-70, 35-80, Vivitar 70-210 KA, Tamron 70-250.
Fixed Industar-50, , Tamron 24mm, Tamron 135mm, Sands Hunter 135mm, Pancolar 50mm, Volna-3, many Exakta lenses
DSLR SIGMA SD9 & SD14, EOS 5D, Sony A700 and NEXF3, Oly E-330, E-400, E-450, E-1
TLR/6x6/645 YashicaMat, Petri 6x45, Nettar, Franka Solida, Brilliant
SLR Minolta X300, Fuji STX II, Praktica VLC3, Pentax P30t, EXA500, EXA 1A, Spotmatic(2), Chinon CM-4S, Ricoh, Contax, Konica TC-X , Minolta 5000, 7000i, 3Sxi, EOS 500 and CX
Rangefinders Chinon 35EE, Konica C35 auto, Canonet 28, Yashica Lynx, FED-2, Yashica electro 35, Argus C3 & C4, Regula Cita III, Voigtlander Vitoret (many), Welta Welti-I, Kodak Signette 35, Zorki-4, Bessa-R & L, Minolta Weathermatic, olympus XA2
Compact Film Konica C35V, Voigtlander Vitorets, Canon Prima Super 105, Olympus XA2 and XA3
Compact Digital Olympus C-5050, Aiptek Slim 3000, Canon Powershot A540, Nikon 5200, SIGMA DP1s, Polaroid X530, IXUS55, Kodak 6490, Powershot G9 and G10
CSCCanon EOS-M, Samsung NX100 and NX210, Lumix G5, NEX-F3 |
|
Back to top |
|
|
Lloydy
Joined: 02 Sep 2009 Posts: 7785 Location: Ironbridge. UK.
Expire: 2022-01-01
|
Posted: Wed Nov 19, 2014 12:17 am Post subject: |
|
|
Lloydy wrote:
The problem with home bending, bending without a machine bender, is that a narrow strip will tend to curve if you bend a strip using hand tools like a hammer and vice. If possible make the bend in the middle of the sheet of metal - then cut it to size. The large area will keep it rigid while bending. _________________ LENSES & CAMERAS FOR SALE.....
I have loads of stuff that I have to get rid of, if you see me commenting about something I have got and you want one, ask me.
My Flickr https://www.flickr.com/photos/mudplugga/
My ipernity -
http://www.ipernity.com/home/294337 |
|
Back to top |
|
|
jaecarlos714
Joined: 06 Jun 2013 Posts: 17 Location: Portland, Oregon
|
Posted: Wed Nov 19, 2014 6:27 pm Post subject: |
|
|
jaecarlos714 wrote:
Jesito,
Yes, this is fun isn't it? Trying to craft parts yourself to make something work again.
My proudest attempt was making a replacement shutter blade out of printer paper. Used a good blade as a template and cut out paper blade, then "painted" with permanent black marker, then stiffened it by soaking with the thin super glue. After drying, had same stiffness as the real blades. Luckily had the pivot pins from the damaged blade and superglued them to the paper blade.
I purposely look for broken lenses just to be able to clean/repair them. Haven't ventured into cameras yet. You are brave!
Lloydy has the right idea to start with a flat metal piece, and to first make the bend in a big sheet, then cut it down to size. That lid from the sardine can looks perfect, and attainable. Try to extract it from the can without using the peeling opener so it stays flat. And buy a small vise to clamp the metal when bending. Lloydy is also correct that plyers/hammers are not the way to go.
Good luck and have fun.
John |
|
Back to top |
|
|
kansalliskala
Joined: 19 Jul 2007 Posts: 5028 Location: Southern Finland countryside
Expire: 2016-12-30
|
Posted: Wed Nov 19, 2014 8:52 pm Post subject: |
|
|
kansalliskala wrote:
don't eat the sardines - they expired on September _________________ MF: Kodak DCS SLR/c; Samsung NX10; OM-10; Canon T50
Zuiko 28/3.5, Distagon 35/2.8; Yashica ML 50/2;
Zuiko 50/1.4; S-M-C 120/2.8; Zuiko 135/3.5; 200/5;
Tamron AD1 135/2.8, Soligor 180/3.5; Tamron AD1 300/5.6
Tamron zooms: 01A, Z-210
Yashicaflex C; Київ 4 + Юпитер 8, 11; Polaroid 100; Olympus XA; Yashica T3
Museum stuff: Certo-Phot; Tele-Edixon 135; Polaris 90-190; Asahi Bellows; Ixus IIs
Projects: Agfa Isolette III (no shutter), Canon AE-1D (no sensor),
Nikon D80 (dead), The "Peace Camera"
AF: Canon, Tokina, Sigma Video: JVC GZ-MG275E |
|
Back to top |
|
|
Jesito
Joined: 24 Aug 2007 Posts: 5745 Location: Olivella, Catalonia, (Spain)
Expire: 2015-01-07
|
Posted: Wed Nov 19, 2014 11:39 pm Post subject: |
|
|
Jesito wrote:
kansalliskala wrote: |
don't eat the sardines - they expired on September |
Good point|
Nicest of this is that I look differently to the grocery stores _________________ Jesito, Moderator
